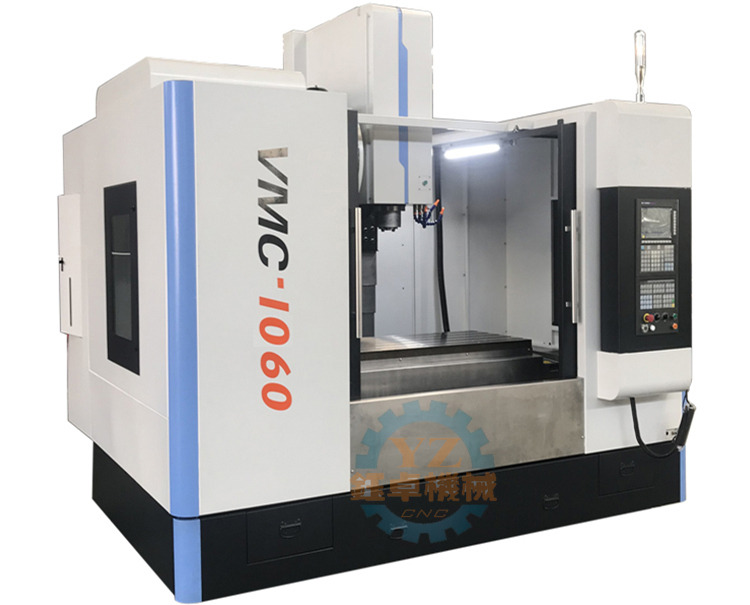

VMC1060 Metal CNC Milling Machine CNC Machining center

1 Set
MOQ
$27,300.00(1 - 1 Sets) $27,000.00(>=2 Sets)
Price
VMC1060 Metal CNC Milling Machine CNC Machining center
Features Gallery Product Description Request A Quote
Features
Specifications
Type: VERTICAL
Range Of Spindle Speed(r.p.m): 20 - 8000
Number Of Axes: 3
No. Of Spindles: Single
Machining Capacity: Medium Duty
Spindle Taper: BT40
Table Travel (X) (mm): 1000
Table Travel (Y) (mm): 600
Table Travel (Z) (mm): 550
Positioning Accuracy (mm): 0.01
Repeatability (X/Y/Z) (mm): 0.01
Condition: New
Model Number: VMC1060
Table Travel (mm): 1200X600
Year: NEW
Voltage: 220v/380v
Dimension(L*W*H): 2800X2400X2500
CNC Control System: KND
Key Selling Points: High Safety Level
Weight (KG): 6000
Spindle Motor Power(kW): 11
Warranty: 1 Year
Max. Table Load(kg): 700 Kg
Applicable Industries: Manufacturing Plant, Machinery Repair Shops
Showroom Location: Russia, Ukraine
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pump
Machine Type: Cnc Vertical Milling Machine
Table Size: 1200X600mm
Working Table Trave: 1000X600X550Mm
Main Motor Power: 11KW
Precision: 0.01mm
Spindle Taper: BT40
Spinde Speed Range: 8000RPM
Spindle Face To Working Table Distance: 100-650mm
Load Weight: 600kg
Power (kW): 11
Basic Infomation
Model Number: VMC1060
Payment & Shipping Terms
Packaging Details: VMC850 Mini CNC Milling Machine and CNC Machining Center: standard exported wooden case and with iron foot.
Supply Ability: 30 Set/Sets per Month
Product Description
Product Description

VMC1060 Metal CNC Milling Machine CNC Machining center

Item
Unit
VMC1060
Travel size
X axis
mm
1000
Y axis
mm
600
Z axis
mm
550
Spindle nose to table
mm
100-650
Feed system
X Y Z rapid feed
m/min
24
Cutting feed
mm/min
1-10000
Table
Table size
mm
1200x600
Max.load
kg
600
T slot
mm
5-18
Spindle
Speed
rpm
8000
Speed
Spindle bore
mm
150
Spindle taper
BT40
Motor
Main motor
kw
11/15
Accuracy
Positioning Accuracy
mm
0.01/300
Machine
Size( L W H)
mm
2800x2400x2500
Weight
kg
6000

VMC Machining Center Configuration

Standard configuration:

1-Synetec CNC Controller
2-Full Enclosure Machine Guard
3-Funnel Type Tool Changer

4-Autmatic Central Lubrication System With Alarm

5-Work Lamp

6-high precision ball screw and guide

Optional configuration:


1-GSK KND Siemens Fanuc Mitusbishi
2-Arm type ATC
3-chip conveyor
4-4 axis and 5 axis
5- Spindle oil coolant,center to water
6.Renishaw probe for workpiece and tool

Know More Details for VMC Machine

Detailed Images

Machine Inspection Euipment

Processing Case

Packing & Delivery

Packaging Details :Exporting Standard Package, Water Proof, Anti-rust and Fumigation-free.

Our Company
Our Service

Pre-Sales Service

1.Customers provide the detailed work piece size or drawing, our professional engineer will check and recommend suitable machine model for you.

2.Or customers send us samples by courier, we can process some samples for customers checking.

3.We can customize machine for customers' requirements.

4.Welcome customers can come to our factory Taian Yuzhuo company for visiting and checking machine.

After-Sales Service

1.Training how to instal the machine, training how to use the machine.

2.Engineers are available to service machinery overseas.

3.Warranty is one year, we would offer the parts (quality problem) free of charge during this period.

4.Note: GSK, Servo driven, motor and transformer, warranty is 3 years.

FAQ

Q1.How to send my enquiry?

You can contact us by email, phone call, message (Whats APP, We Chat, Skype).


Q2.How long can I get feedback after enquiry?

We will reply you within 6hrs in working day.


Q3.Where is your factory located? How can I visit there?

Our factory is located in South Development zone, Tai An City, Shan Dong Province, China. There has flight from Jinan need 1.5 hours, or High speed train directly to our city. Welcome to visit our factory.


Q4.Delivery time

Machines order takes 20 days after deposit payment received. Please inquiry sales.


Q5.What is the package? Is it suitable for shipment?

Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.


Q6.Payment term

30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.Welcome to inquiry sales.


Q7.Can I trust you?

Sure, we're Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.


Q8.How long is the warranty for machines?

Machines warranty is 24 months after receive goods. in Warranty time,we can provide new free parts for changing.Please contact your YZ CNC sales representative for details.


Q9.How' s your after-sale service?

Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.


Q10.Can you engineer come to our place to help with machine installation & commission?

Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.


Q11. If i can't know how to operate. Can your engineer help me programme well on machine ?

Sure. You can provide your detailed sample drawing.engineer can programme well on machine. Or in some machines, we will put into U-disc of operation video to help you.
