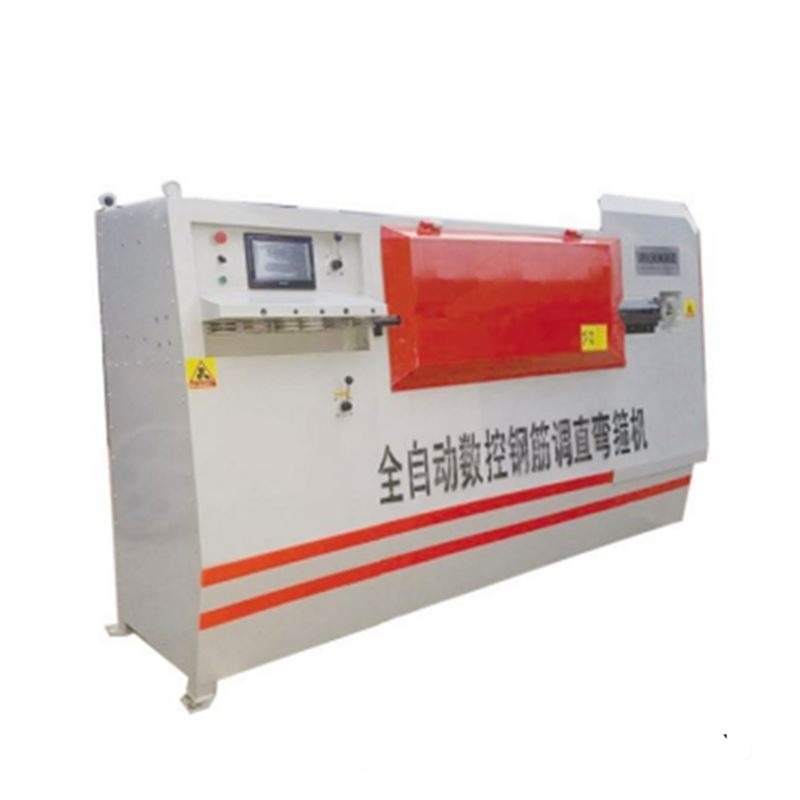

Factory and Cut CNC Automatic Rebar Portable Stirrup Bending Machine

1.0 Pieces
MOQ
Factory and Cut CNC Automatic Rebar Portable Stirrup Bending Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangdong, China
Brand Name: GH
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor
Material / Metal Processed: Carbon Steel, Steel Rebars
Automation: Automatic
Year: 2020
Weight (KG): 1680
Key Selling Points: High Productivity
Warranty: 1 Year
Motor Power (kW): 18.2
Applicable Industries: Manufacturing Plant, Construction Works , Building Material Shops, Steel Bar Bending
Showroom Location: None
Model No.: SBM-12A
Length Accuracy: ±1mm
Angle Accuracy: ±1°
Number Of Processing: ≤2
Steel Bar Processing Shape: 280 Kinds
Local Service Location: None
Certification: ISO 9001:2000
After-sales Service Provided: Online Support, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Free Spare Parts, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: GH
Certification: ISO 9001:2000
Model Number: SBM-12A
Payment & Shipping Terms
Packaging Details: Packed with professional exported case.
Supply Ability: 1000 Set/Sets per Month
Product Description

China top selling Electromechanical Equipment high performance CNC rebar stirrup bending machine for wire rod bending

China top selling Electromechanical Equipment high performance CNC rebar stirrup bending machine for wire rod bending

China top selling Electromechanical Equipment high performance CNC rebar stirrup bending machine for wire rod bending

Product Description

TECHNICAL DATA

Model No.

SBM-12A

Overall dimension (main machine)

3200*950*1750mm (L*W*H)

Single wire Processing capability

4-12mm

Double wire Processing capability

4-8mm

Bending angle

180°

Center pin diameter

16/18/20

Maximum traction speed

80/130/min

Maximum bending speed

1000/sec

Equipment power

18.2KW

Average power consumption

3-5KW/h

Length tolerance

±1mm

Angle tolerance

±1°

Number of processing

≤2

Pneumatic pressure

≥-10 -12

Working environment humidity

-5℃ -40℃

Steel bar processing shape

280 kinds

Equipment color

Green porcelain or customized

Control Way

Automatic

Other configuration

Can be matched

Machine weight

1680KG

We also have other models of this type CNC automatic rebar bender / stirrup bending machine, please tell us your rebar information, so that we can quote you the right model of our machine accordingly.

Fully automatic CNC bending and ribbing machine production equipment, can be used for slab length of 12 meters, one machine can be used.
1. The automatic wire feeding system has high structural precision.
2. The numerical control system has high precision and small error.
3, engineering slope design, not chaotic, straightening efficiency.
4, using PLC intelligent control, can process a variety of sizes and specifications of polygons.
5, from the wire rod raw material to the stirrup product once formed, can process cold and hot rolled high-strength wire rod steel.
6, high production efficiency, quite 20 to 30 labor.
7. The equipment is highly usable and requires only one person to operate, saving a lot of labor.
8, saving raw materials, in the work is continuous molding almost no loss of steel head.
9. Equipment maintenance costs and energy consumption costs are very low.
10. This machine is equipped with a ribbed receiving frame, and the size can be customized according to user requirements.
11. The product is stable, high in efficiency and fast in straightening speed.

Packaging & Shipping

Package: Packed by wooden case.

Shipment: By sea, LCL or FCL.

Our Services

1. We will provide the after- service support for all the customers;

2. If the customer needs, we will assign the engineers to provide technical support on site.

3. Implement the first responsibility system with warm reception, and must answer all questions.

4. Provide technical consultation on material selection and use, and follow up on site as required.

5. The delivery accuracy of the goods is 100%, and the goods code, invoice and warranty are processed according to the requirements of the customers and timely delivered to the customers.

6. Follow up user's product usage, provide technical support and training in time.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer. Our factory address is Baoqing industrial concentration district, Shaoyang city, Hunan province, China.

Q: How long is your delivery time?

A: Generally it is 10 days if the goods are in stock. or it is 10-25 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.

Q: Can you provide installation service?

A: We can provide installation service , but you need pay for the air tickets, hotel,food and 50 USD/ day.

If you have any question , please feel free to contact with me.
