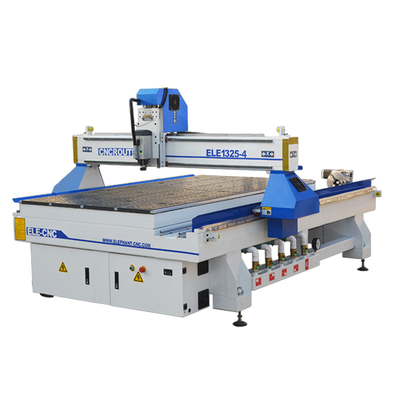

Hotels CNC Router Guangzhou Price 1325 With CNC Router Cutting Aluminum For CNC Milling Machine For Sale

1.0 Sets
MOQ
Hotels CNC Router Guangzhou Price 1325 With CNC Router Cutting Aluminum For CNC Milling Machine For Sale
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Positioning Accuracy (mm): 0.02 Mm
No. Of Spindles: Single
Working Table Size(mm): 1300×2500
Machine Type: CNC Router
Travel (X Axis)(mm): 1300 Mm
Travel (Y Axis)(mm): 2500 Mm
Repeatability (X/Y/Z) (mm): 0.02 Mm
CNC Or Not: CNC
Voltage: 380V, 3phase, 60Hz
Dimension(L*W*H): 3200*2140*1850mm
Weight (KG): 1500
Control System Brand: Mach3, DSP
Warranty: 1 Year
Key Selling Points: Multifunctional
Applicable Industries: Hotels, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Pump
Working Area: 1300*2500*200mm
Control System: NCstudio 53B Control System With Wireless Handle
Spindle: 6kw Italy HSD Air Cooling Spindle
Spindle Speed: 0-18000RPM
Motor And Driver: Japan YASKAWA 850w Servo Motor And Driver
Inverter: 7.5kw E Type Taiwan DELTA Inverter
Reducer: Japan SHIMPO Reducer For X,Y Axis
Linear Rail: Taiwan #20 HIWIN Linear Guide
X,Y Axis Transmission: X,Y Axis Rack And Pinion Drive
Weight: 1400kg
After-sales Service Provided: Video Technical Support
Local Service Location: Peru, India, Mexico, Japan, Malaysia, Argentina, South Korea, Algeria, Sri Lanka
After Warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Showroom Location: Italy, Brazil, Peru, India, Mexico, Kenya, Colombia
Marketing Type: New Product 2020
Certification: CE ISO9001 SGS BV TUV ISO9000
Basic Infomation
Certification: CE ISO9001 SGS BV TUV ISO9000
Payment & Shipping Terms
Packaging Details: 1.Outside package:Standard marine export plywood case. 2.inner package:Stretch film and plastic film for humidity. We can package according to your requests.
Supply Ability: 200 Set/Sets per Month
Product Description
Products Description
Blue elephant cnc router 1325 italy woodworking machine , woodworking machine cnc for sale
1300 * 2500mm the standard working size, equipped with 200mm rotary device, is professionally used for processing cylindrical products, such as wooden table legs,railing etc. Which do not need to move, saving labor and time. And HSD spindle is the highest quality and most convenient for process.

Advantages
1) Heavy duty thicker and bigger welded steel tube frame — more stronger
2) 4.5kw Italy HSD air cooling spindle--best brand in the world, best quality for cutting and carving. Having a fan in the spindle, with good cooling effect.
3) One 200mm rotary on one side of machine, suitable for making cylinder.
4) DSP A18 control system, can support 4 axis cnc router machine, with one independent handle, very convenient for operation.
5) Vacuum & T-slot working table, match one vacuum pump, can fix the material more stable.

Technical parameters
X,Y,Z Working Area
1300x2500x200mm
Table Surface
Vacuum and T-slot working table,4 zones
Frame
New style heavy duty Welded Structure
X, Y Structure
Rack and Pinion Drive, #20 Hiwin Rail Linear Bearings
Z Structure
Hiwin Rail Linear Bearings and Ball Screw
Spindle Power
4.5kw Italy HSD air cooling spindle
Spindle Speed
0-18000RPM
Inverter
5.5kw Delta inverter
Drive Motors
Stepper
Working Voltage
380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)
Command Language
G Code
Operating System
DSP A18
Rotary device
200mm diameter*2200mm length
Software Compatibility
Type3/UcancameV9 Software, (Option: Artcam Software)
Sample & Application
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,
cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster
molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic
sheeting, PVC pipe, wooden planks and other non-metallic mold.
Details Images


Spindle Power
4.5kw Italy HSD air cooling spindle


Operating System
DSP A18 control systme


Rotary device
200mm diameter*2200mm length
40% customer choice
Customer feedback
After sales service in Holland
After-sales in Cyprus
Customer visiting our factory
Feedback from New Zealand customers
Our service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* More than 95% of the timely response rate, timely response to customer questions

After-Sales Service

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Customer receive our machine
Packaging & Delivery
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Company Informations
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
