SAGA horizontal sliding table board saw machine 45 or 90 degree sliding table wood saw precision automatic cutting machine

1.0 Sets
MOQ
SAGA horizontal sliding table board saw machine 45 or 90 degree sliding table wood saw precision automatic cutting machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Panel Saw
Use: Woodworking
Style: Horizontal
Usage: Precision Cut
Voltage: 380V
Dimension(L*W*H): 3200*2220*1750mm
Warranty: 1 Year
Application: Frame, Panel Board, Solidwood, PVC, Wood Cross Cutting
Weight (KG): 900 KG
Power (kW): 8kw
Key Selling Points: Competitive Price
Max.Cutting Height At 90°(mm): 125mm
Max.Cutting Height At 45°(mm): 85mm
Max. Length Of Workpiece (mm): 3200mm
Applicable Industries: Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Construction Works , Food & Beverage Shops, Advertising Company
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Max Cutting Thickness: 120mm
Max Cutting Length: 3200mm
Raise And Lower Of Blade: Electrical
Tilting Of Blade: Electrical
Main Motor Power: 6.5kW
Scoring Motor Power: 1.1kW
Spindle Diameter: 30mm
Blade Diameter: 400mm
Max Cutting With By Cnc Control: 1300mm
Basic Infomation
Payment & Shipping Terms
Packaging Details: Water proof plastic with plywood base, or closed plywood box
Supply Ability: 20 Set/Sets per Month
Product Description
Product Overview

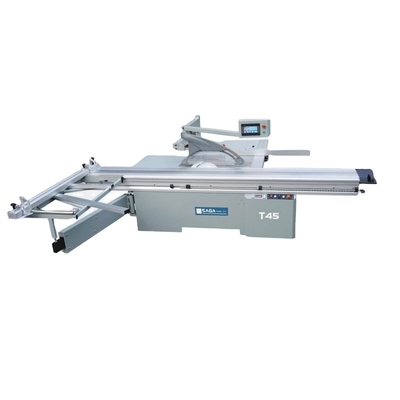

SAGAMAC T45 CNC Panel Saw

This is your next genertion panel saw with ectraordinary stable running, smooth to use and highlest standard of safety.
CNC controlled ripping fence makes zero error and setting of width is just by type in a number.
Big dust collection cover make working super clean and safe, any position sliding table stop makes changing blade very convinient. Electrical Tilting fuction and blade raise and down makes setting mooth and quick.
Heavy machine saw unit and structure make sure your saw works stable for life-long.
SAGA T45 meet all your requirments for a high grade panel saw.
FEATURES AT A GLANCE
HIGHLIGHTS OF MACHINE
Numerial control of rip fence
Away from tedious movement and lock of fence and double checking of measurements, SAGA CNC controlled fence makes setting of width to next generation.
Electrical tilting with number index.
Super easy electrical tilting with number on LCD screen to give a clear refference, the motor will auto stop when it reaches the limit of 45 or 90 degrees.
Electrical blade raise and down.
When we cutting different thickness, we need to raise or lower the blade for a perfect cutting line, with electrical raise and down function, the setting becomes very easy by just press a button
Scoring blade hidden function.
We can easily lower the scording blade when we do solidwood cutting or sometimes cross cutting, grooving, no need of tedious taking off of blade.

Big dust collection cover.

Makes working condition super clean and safe, the pressure roller on the cover also gives a pressure when the panel pass to support a stable cutting

Any position lock of sliding table

Sliding table can be locked at any position if you want to check the saw, changing blade, or clean the machine, very useful function at real using conditon.
PRODUCT SPECIFICATIONS
No
Item
Data
1
Power
8KW
2
Max cutting length
3200mm
3
Max cutting height at 90 degree
125mm
4
Max cutting height at 45 degree
70mm
5
Weight of machine
900kgs
Successful Project
High precision straight cutting
Zero error 45 cutting
Grooving
SALES AND SERVICE NETWORK
FAQ
Question 1 What is the power suppy of machine? Question 2 What will be the packing
Answer: Normally it is 380V 50Hz 3 pahse, but it also can Answer:sea worthy plywood packing
be customized
Question 3 what is delivery time How long time warrentee
Most time it is in stock, and please contact us to confirm We give 2 years of warrentee to main part of
machine, we will send by courier if there is
any condition by normal use.
