Hotels 1325 Woodworking CNC Router Woodworking CNC Router Machine

1 set
MOQ
Hotels 1325 Woodworking CNC Router Woodworking CNC Router Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Positioning Accuracy (mm): 0.02 Mm
No. Of Spindles: Single
Working Table Size(mm): 1300×2500
Machine Type: CNC Router
Travel (X Axis)(mm): 1300 Mm
Travel (Y Axis)(mm): 2500 Mm
Repeatability (X/Y/Z) (mm): 0.02 Mm
Spindle Motor Power(kW): 3kw
CNC Or Not: CNC
Place Of Origin: Shandong, China
Brand Name: Leadingsmart
Voltage: AC380V(Option)
Dimension(L*W*H): 2200X3400X1650xmm
Weight (KG): 1300
Control System Brand: NC Studio, Syntec, DSP, RichAuto
Warranty: 2 Years
Key Selling Points: Competitive Price
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Bearing, Motor
Control System: DSP
Transmission: Helical Rack Pinion
Software: Artcam/Type3
Inverter: Best
Spindle: Water Cooling Spindle
Table Surface: T-slot Aluminum Table
Driving System: Leadshine Drive
Guide Rail: HIWIN Linear Square Guide Rail
Command Code: G Code*.u00*.mmg*.plt
Spindle Speed: 0-24000rpm/min
After-sales Service Provided: Online Support
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea
After Warranty Service: Video Technical Support, Online Support
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Marketing Type: New Product 2020
Certification: CE
Basic Infomation
Place of Origin: Shandong, China
Brand Name: Leadingsmart, NC Studio, Syntec, DSP, RichAuto
Certification: CE
Payment & Shipping Terms
Packaging Details: standard wooden case
Supply Ability: 200 Set/Sets per Month
Product Description
Product Overview

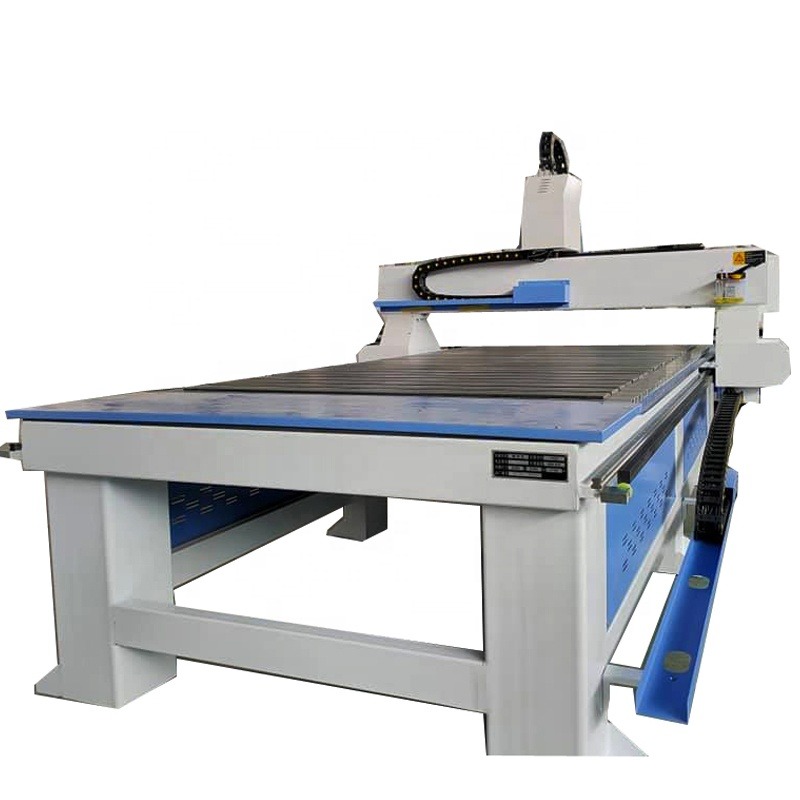

1325 Cnc Wood Router Woodworking Cnc Router Machine

*With the T-slot working table, it is easier to fix the small materials.
* Adopting heavy machine duty with 6 legs, it makes the machine run more stable.
* Using the best brand inverter, it has good quality and it is more economic.
* Adopting 3kw HQD water cooling spindle, or air cooling as optional
FEATURES AT A GLANCE
1. Using high-precision linear guide rail, X Y adopts high-precision helical gear transmission, which has large bearing capacity,stable operation, high precision, long service life and accurate lower cutter.
2. The whole machine adopts steel structure for seamless welding, good rigidity, strong strength and rigidity, and the machine bearing capacity can reach more than one ton.
3. Software compatibility, compatible with a variety of CAD / CAM design software such as Typ3 / Artcam / Castmate / Wentai.
4. It has the functions of power failure recovery, breakpoint continuous carving and so on.
5. Thickened square tube welding, fine grinding by milling machine to ensure installation accuracy.

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Description
Parameter
Lubrication system
Auto Lubrication system
X,Y,Z Working Area
1300*2500*200mm
Structure
Industrial class square tube strong structure
Working voltage
220v,3ph,50hz
Table Surface
T-slot working table
Spindle
3kw china changsheng water cooling spindle or air cooling optional
Motor and driver
Stepper 450B motor and Yako2608 driver
Inverter
3.7kw best inverter
Dust Collector
With dust collector, 220V,1ph,single bags
Control System
Nc studio control system
Linear rail
Helical rack gear for X, Y axis Taiwan TBI ball screw
Limit
limit switch for X, Y, Z axis
PRODUCT CONFIGURATION
3kw water cooling spindle
DSP control system
450B stepper motor
Yako stepper driver
BEST inverter
High precision Helical rack and gear
Tool bits
tool sensor
dragon chain
Application
Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite
gates,cupboarddoors, interior doors, sofa legs, headboards and so on.

Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster
molding,and other advertising materials derivatives making.

Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.

Relief Sculpture and 3D Engraving & Cylindrical object.
