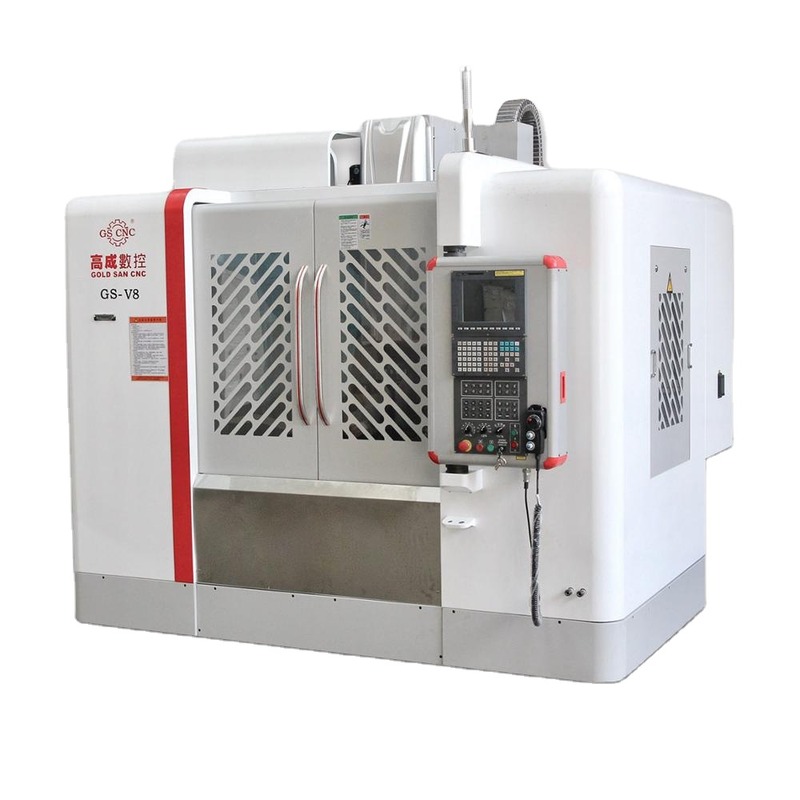

GS-V8 CNC High Speed Vertical Machine Center

1 Set
$43,500.00(>=1 Sets)
GS-V8 CNC High Speed Vertical Machine Center
Features Gallery Product Description Request A Quote
Condition: New
No. Of Spindles: Single
Dimension(L*W*H): 2600 X 2500 X 2400 Mm
Weight (T): 5.2 T
Table Size (mm): 1000 X 500
Number Of Axes: 3
Table Travel (X) (mm): 850
Table Travel (Y) (mm): 500
Table Travel (Z) (mm): 500
Positioning Accuracy (mm): ±0.008
Repeatability (X/Y/Z) (mm): ±0.005
Spindle Motor Power(kW): 5.5
Max. Table Load(kg): 350 Kg
Min. Time Of Tool Change(s): 2
Tool Magazine Capacity: 24
Key Selling Points: High-accuracy
Warranty: 1 Year
Place Of Origin: Guangdong, China
Brand Name: Gold San
Voltage: 380V/50Hz
Applicable Industries: Manufacturing Plant
Showroom Location: Turkey, India
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Worktable Size: 1000 X 500 Mm
X/Y/Z Travel: 850 X 500 X 500 Mm
Max. Workpiece Weight: 350 Kg
Spindle Speed: 10000 Rpm
Spindle Taper: BT40/150
Spindle Power: 5.5Kw
Tool Magazine: Round Disc 24T
Precision: 0.008 / 300 Mm
Repeatability: 0.008 Mm
Power: 22KW
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Gold San
Payment & Shipping Terms
Product Description
Product Description

Product Application

GS-V8 is CNC controlled machine center equipped with automatic tool changers, tool magazines, coolant systems, and enclosures. It is generally classified as vertical machining centers (VMCs).
Different from the original CNC Milling Machines or Machine Centers, GS-V8 could not only do milling machining but also drilling and tapping. Moreover, GS-V8 is standard equipped with automatic tool changer and tool magazine. These machine features make it possible for GS-V8 to easily do multiple machining processes more productively and it is especially intended for processing 3C (Computer, Communication, Consumer Electronic) products.

Size of Worktable
1000 x 500 mm
Travel of X, Y, Z Axis
850 x 500 x 500 mm
Distance from spindle to worktable
150 - 650 mm
Speed of Spindle Movement
30m / min
Position Accuracy
0.008 / 300mm
Re-position Accuracy
0.008 mm

ER32 10000rpm
5.5 Kw 24T Disk Type Tool Changer
Belt Type Drive Spindle
Air cooling
Tool Magazine
24T Disk Type
Max. Workpiece Weight
350 Kg
Total Power
18 Kw
Size of Machine
2600 x 2500 x 2400 mm
Machine Weight
5200 Kg
Power Supply
380V / 50Hz
CNC Controller
SYNTEC 11MA with LAN data transmission function
Servo Motor and Drive
Guide and Ball Screw
Linear guides, C3 high precision level ball screws

Main Features

1) High speed axis travel (up to 36m / min)
2) Automatic tool changer with Ultra High Tool Changing Speed (up to 2.5s)
3) BT40 spindle
4) Supporting Drilling, Tapping and Milling Machining Processes.

Detailed Images
Our Company
Our Service

Quality Control

* To deliver the best quality to our customers, every new machine from the production line is challenged by an extremely strict quality check procedure.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.


Q1: Are you trading company or manufacturer?

A: Manufacturer.

Q2: How long is your delivery time?

A: 35-60 days for general model. If it needs customized production, it will be longer. Delivery time depends on product changes.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could provide samples. Sample fee and freight cost are paid by your side.

Q4: What is your terms of payment ?

A: T/T or L/C is ok. T/T is 30% after PI confirmation, 70% before shipment.
