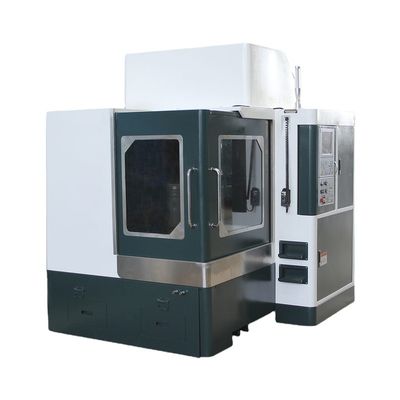

GS High Rigidity CNC VMC Belt Type Vertical Machine Center

1 Set
$69,500.00(>=1 Sets)
GS High Rigidity CNC VMC Belt Type Vertical Machine Center
Features Gallery Product Description Request A Quote
Condition: New
No. Of Spindles: Single
Dimension(L*W*H): 4211 X 2950 X 2800 Mm
Weight (T): 12 T
Table Size (mm): 1800 X 900
CNC Control System: Syntec 11MA
Number Of Axes: 3
Table Travel (X) (mm): 1600
Table Travel (Y) (mm): 900
Table Travel (Z) (mm): 680
Positioning Accuracy (mm): 0.005
Repeatability (X/Y/Z) (mm): 0.008
Spindle Motor Power(kW): 15
Max. Table Load(kg): 1600 Kg
Min. Time Of Tool Change(s): 2
Tool Magazine Capacity: 24
Key Selling Points: High Rigidity
Warranty: 1 Year
Place Of Origin: Guangdong, China
Brand Name: Gold San
Voltage: 380V / 50Hz
Applicable Industries: Manufacturing Plant
Showroom Location: Turkey, India
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor
Worktable Size: 1800 X 900 Mm
Travel For X, Y, Z Axis: 1600 X 900 X 680 Mm
Max. Workpiece Weight: 1600Kg
Spindle Speed: 8000rpm
Spindle Taper: BT50
Spindle Power: 15Kw
Tool Magazine Type: Round Disc 24T
Positioning Accuracy: 0.005 / 300 Mm
Repeatability: 0.008mm
Power (kW): 11.5
After-sales Service Provided: Field Installation, Commissioning And Training
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Turkey, Pakistan, India
Certification: ISO9001:2008
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Gold San
Certification: ISO9001:2008
Payment & Shipping Terms
Product Description
Product Description

Product Application

The guide rail were treated by high frequency quenching. Ensuring the long term stability and durability of machine tool!

* The structure of the machine tool is analyzed with ANSYS to guarantee high speed and high precision continuous machining. Simulation tests for deformation under heavy load is conducted to guarantee excellent anti-bending rigidity of machine tool.

* The surface of the guide rail were treated by high frequency quenching process, the hardness can reach HRC50 ± 5.

* Integrated motor block can improve transmission rigidity.

* Standard with Syntec 21 MA, MITSUBISHI, SIEMENS & FAUNC are optional.

Worktable Size
1600 x 900 mm
Travel of X, Y, Z Axis
1600 x 900 x 680 mm
Max. Workpiece Weight
1600 Kg
Max, Spindle Speed
8000 rpm
Spindle Type
BT50, Belt Type Drive
Max. Spindle Power
15 Kw
Spindle to Worktable
160 - 840 mm
Automatic Tool Changer
24T Disk Type (Optional)
Rapid Movement
12 / 12 / 10 m / min
Position Accuracy
0.005 / 300 mm
0.008 mm
Power Supply
380V / 50Hz
Machine Weight
12000 Kg
Machine Size
4211 x 2950 x 2800 mm
10000rpm Belt Type Spindle
4th Axis NC Working Table
Full Gear Spindle Transmission
Product Samples
Our Company

Since 1991, GOLD SAN has exporeted EDM machines to 34 countries in the world. Our machines are widely applied to the production of dies and molds and other applications that cannot be achieved by standard machining methods.

Providing professional advices, support and training for clients are our core rule. We insist to satisfy every customer not only with our productive machines but also our sincere services.

GOLDSAN's factory is located in Jiangmen Industrial Park, China, which is conveniently located 90 minutes driving from Guangzhou Baiyun airport. Customer support is handled by experienced engineers and all support calls and emails are documented and entered into a CRM database resulting in the highest degree of customer satisfaction.

Our Service

Quality Control

* To deliver the best quality to our customers, every new machine from production line is challenged by an extremely strict quality check procedure.

After-Sales Service

* Training how to install machine, training how to use the machine.

* Engineers available to service machinery overseas.


Q1: Are you trading company or manufacturer?

A: Manufacturer.

Q2: How long is your delivery time?

A: 30-60 days for general model. If it needs customized production, it will be longer. Delivery time depends on product changes.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could provide samples. Sample fee and freight cost are paid by your side.

Q4: What is your terms of payment ?

A: T/T or L/C is ok. T/T is 30% after PI confirmation, 70% before shipment.
