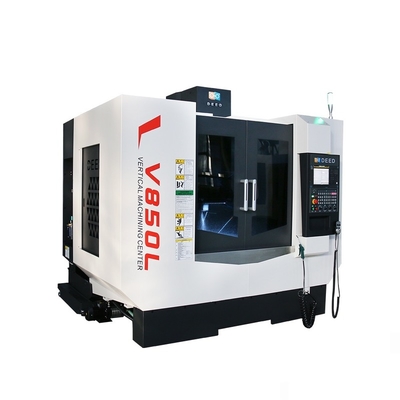

Factory VMC COMPACT V850L CNC Mill Automatic CNC Machining Center 3 Milling Machining Centers

1 set
MOQ
$50,000.00(1 - 4 sets) $38,000.00(>=5 sets)
Price
Factory VMC COMPACT V850L CNC Mill Automatic CNC Machining Center 3 Milling Machining Centers
Features Gallery Product Description Request A Quote
Features
Specifications
Type: VERTICAL, VMC
Range Of Spindle Speed(r.p.m): 10 - 10000
Number Of Axes: 3
No. Of Spindles: Single
Machining Capacity: Light Duty
Spindle Taper: BT40
Table Travel (X) (mm): 850
Table Travel (Y) (mm): 510
Table Travel (Z) (mm): 510
Positioning Accuracy (mm): 0.008
Repeatability (X/Y/Z) (mm): 0.005
Condition: New
Model Number: V850L
Year: 2021
Voltage: 380V
CNC Control System: FANUC/SIEMENS/MITSUBISHI/FAGOR
Key Selling Points: Low Cost, High Reliability
Weight (KG): 6000
Spindle Motor Power(kW): 11/18.5
Warranty: 1 Year
Max. Table Load(kg): 500 Kg
Applicable Industries: Manufacturing Plant, Auto Parts, Mould, Fabrication Parts, Engineering Machinery, Construction Machinery, Packing Industry, Printing Industry, Textile Industry, Aviation, Aerospace, Military
Showroom Location: Egypt, Turkey, Italy, Germany, Russia, Spain, South Korea, South Africa
Marketing Type: Direct Marketing/Distributor
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Gearbox, Spindle, Controller, Ball Screw, Linear Guideway, ATC
CNC Or Not: CNC
Product Name: Vertical CNC Milling Machine
Keyword: Milling Machining Centers
After-sales Service Provided: Service Machinery Overseas
Spindle Speed: 8000rpm-10000rpm
Controller: FANUC SIEMENS GSK SYNTEC
Processing: Milling, Tapping
Machine Bed: Mineral Casting Bed
Spindle Type: BT40
Basic Infomation
Model Number: V850L
Payment & Shipping Terms
Packaging Details: steel pallet in container
Supply Ability: 300 Set/Sets per Month
Product Description

SPECIFICATION V1160L
TRAVEL
X-axis travel 850mm
Y-axis travel 510mm
Z-axis travel 510mm
Spindle nose to table surface 150~660 mm
SPINDLE
Drive type Belt/Direct Drive
Spindle taper BT40
Max. Speed 8000 rpm / 10000 rpm
Spindle Power 11/18.5 kW
Spindle Torque 52.5/118 Nm
TABLE
Size 950x500mm
T-Slot (size * quantity * space) 18x4x100mm
Max load 500kgs
FEED
Max.cutting speed 1-12000 mm/min
Rapid traverse 36/36/24 m/min
ACCURACY
Positioning(half-closed loop) 0.008mm
Repeatability(half-closed loop) 0.005mm
ATC
Type Disc type ATC 24T
Maximum tool size(full/unfull/length) Φ78/Φ150/ 300 mm
Maximum tool weight 8kg
OTHERS
Air Pressure 0.65Mpa
Power Capacity 25kVA
Machine Weight 6000kgs
Machine Floor Space (L *W *H) 2600x2750x3050mm

PRODUCT APPLICATION

EXHIBITION&CUSTOMER

COMPANY PROFILE

CERTIFICATE

PACKING & DELIVERY

FAQ
